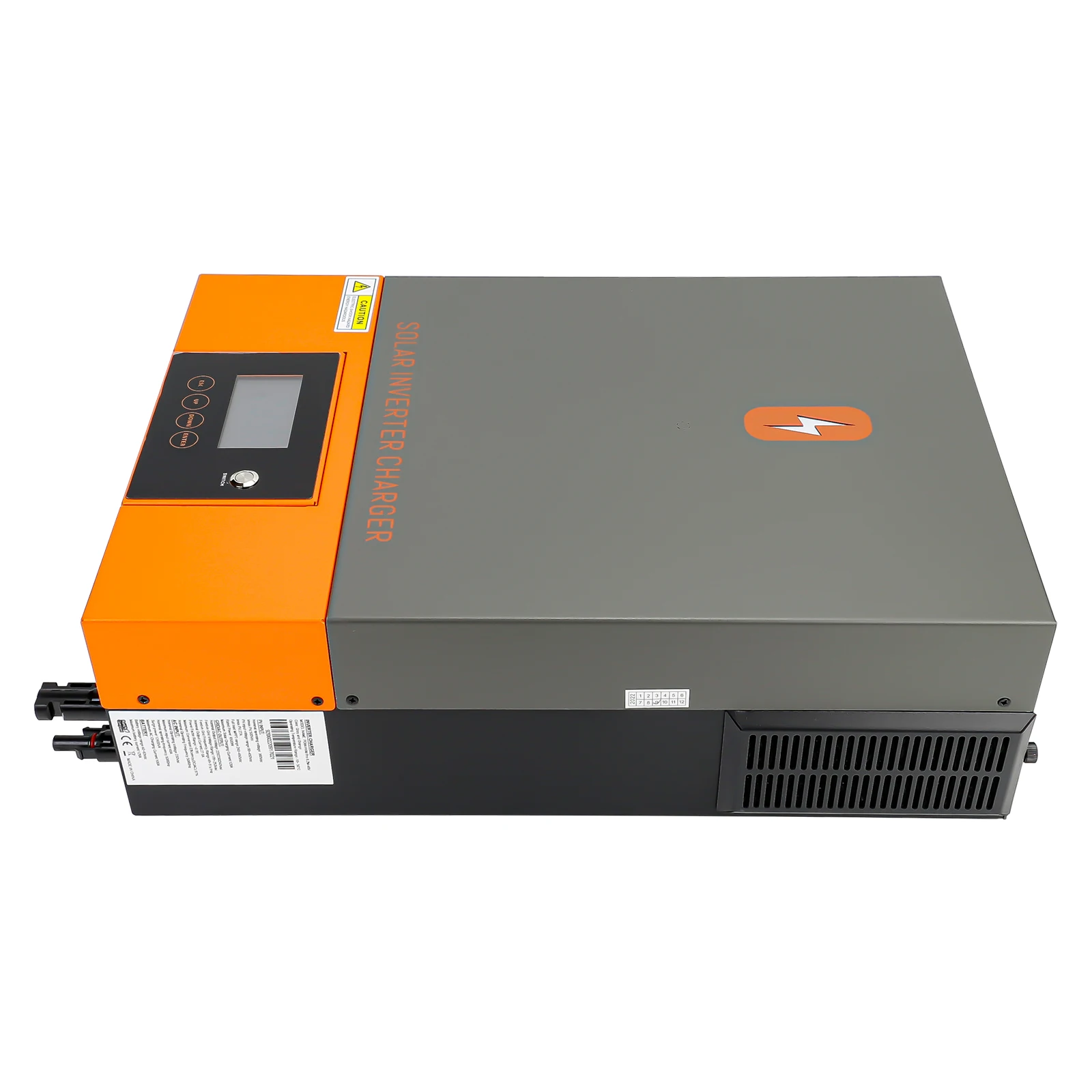

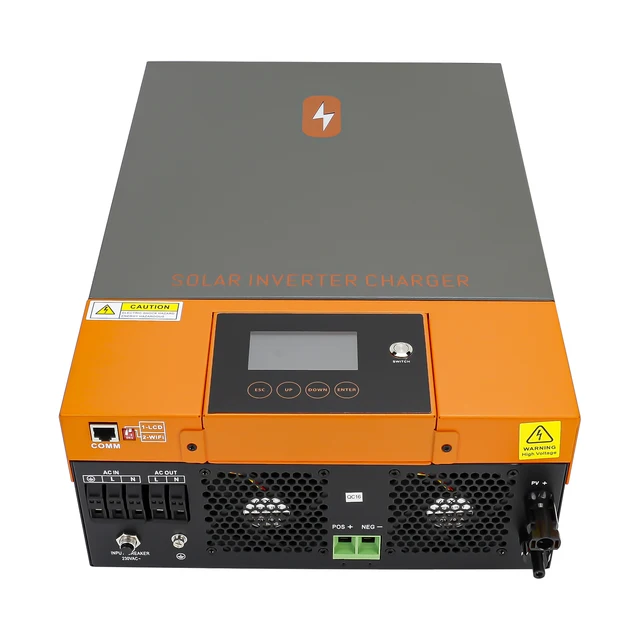

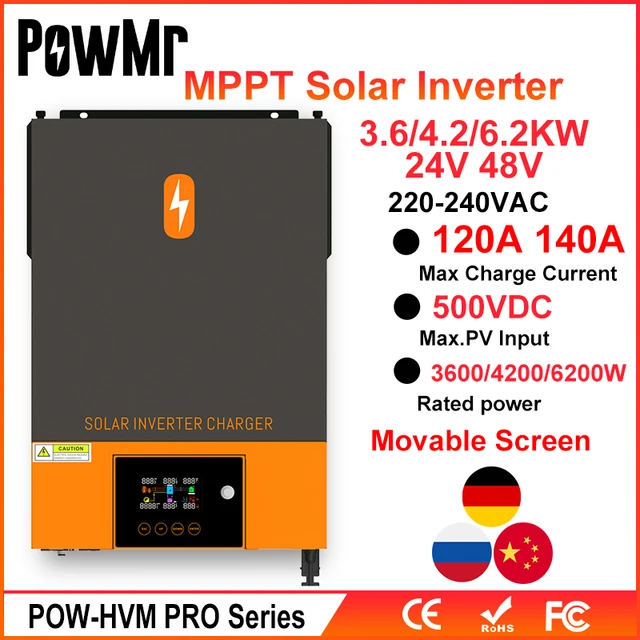

PowMr 6.2KW On-grid&Grid Tied Inverter 48V to 230VAC MPPT 120A Output And Max Solar Panel 500VDC Input for Lifepo4 Solar Battery

From R5167.84

  • Color:

  • Output Voltage:

  • Ships From:

Categories:

Buy With Confidence

100% Safe Payment



  • Description

    PowMr 6.2KW On-grid&Grid Tied Inverter 48V to 230VAC MPPT 120A Output And Max Solar Panel 500VDC Input for Lifepo4 Solar Battery With Movable Screen 2022 New Model

    Overviwe:

    This is a new PowMr grid inverter, which can transfer excess power to the network. This inverter has a simple appearance, powerful functions and simple operation, which is very suitable for European families.

    Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

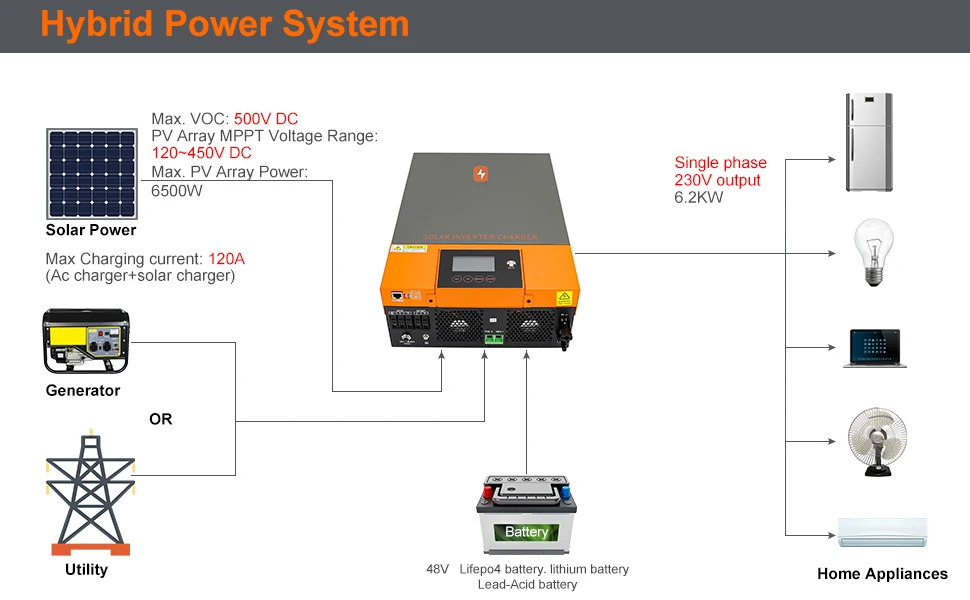

    When the MPPT input voltage of PV modules is within an acceptable range (see specification for the details), this inverter is able to generate power to feed the grid (utility) and charge the battery.

    Features:

    1.Pure sine wave inverter
    2.Configurable input voltage range for home appliances and personal computers via LCD setting
    3.Configurable battery charging current based on applications via LCD setting
    4.Configurable AC/Solar Charger priority via LCD setting
    5.Compatible with mains voltage or generator power
    6.Auto restart while AC is recovering
    7.Overload/ Over temperature/ short circuit protection
    8.Smart battery charger design for optimized battery performance
    9.Cold start function

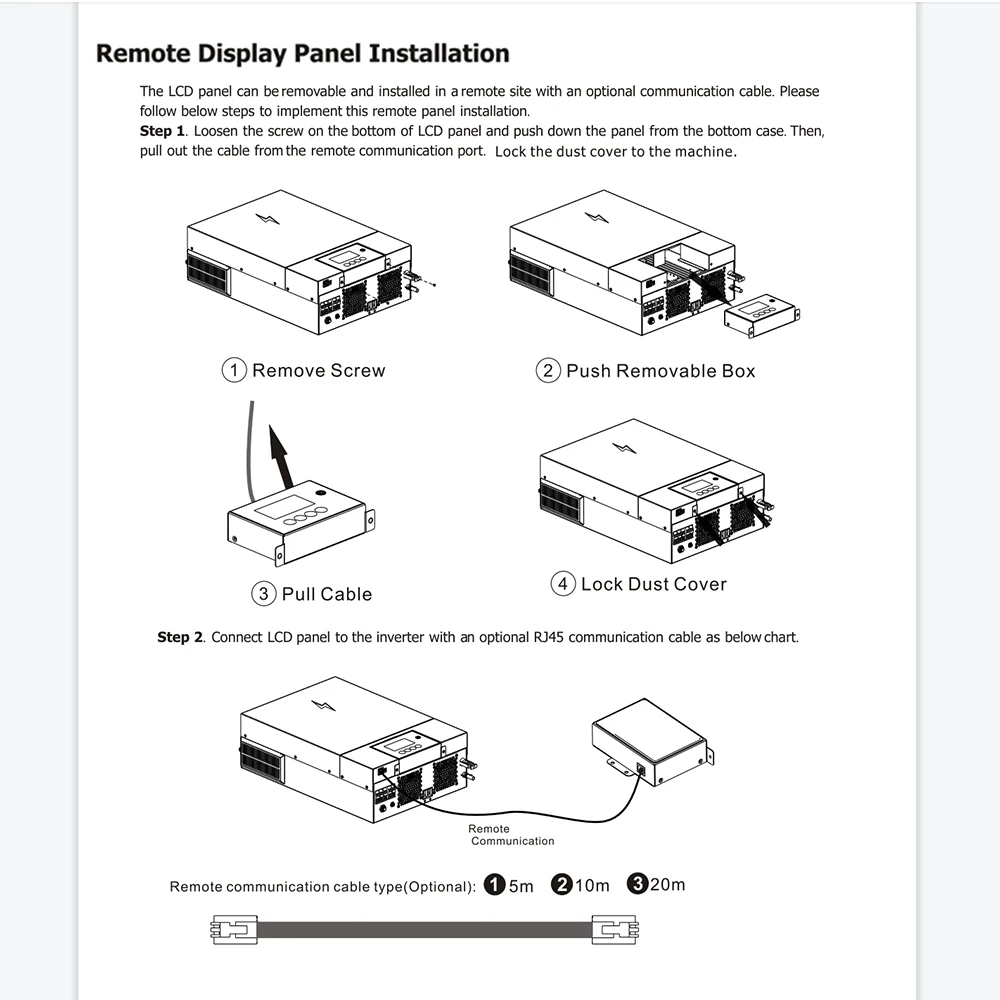

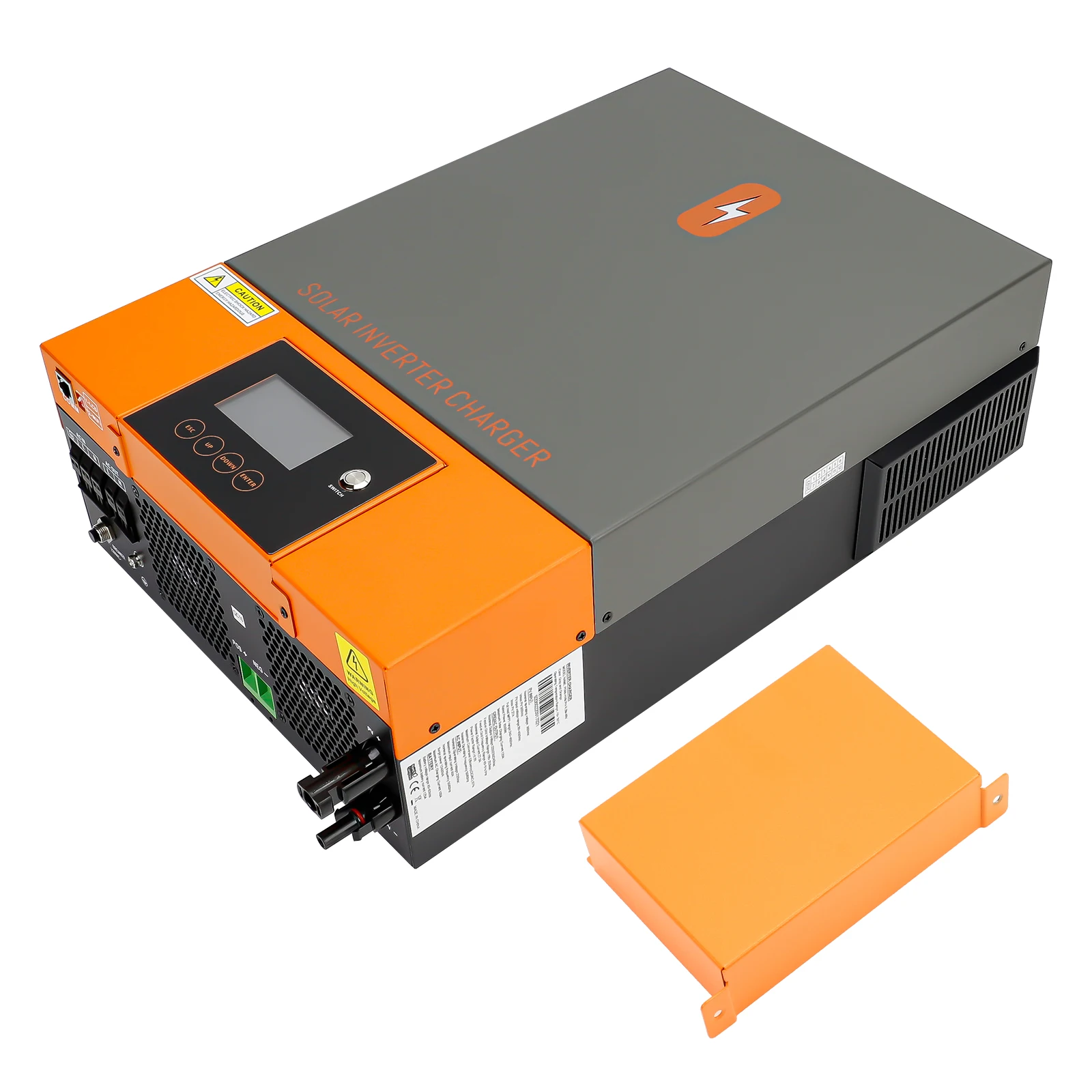

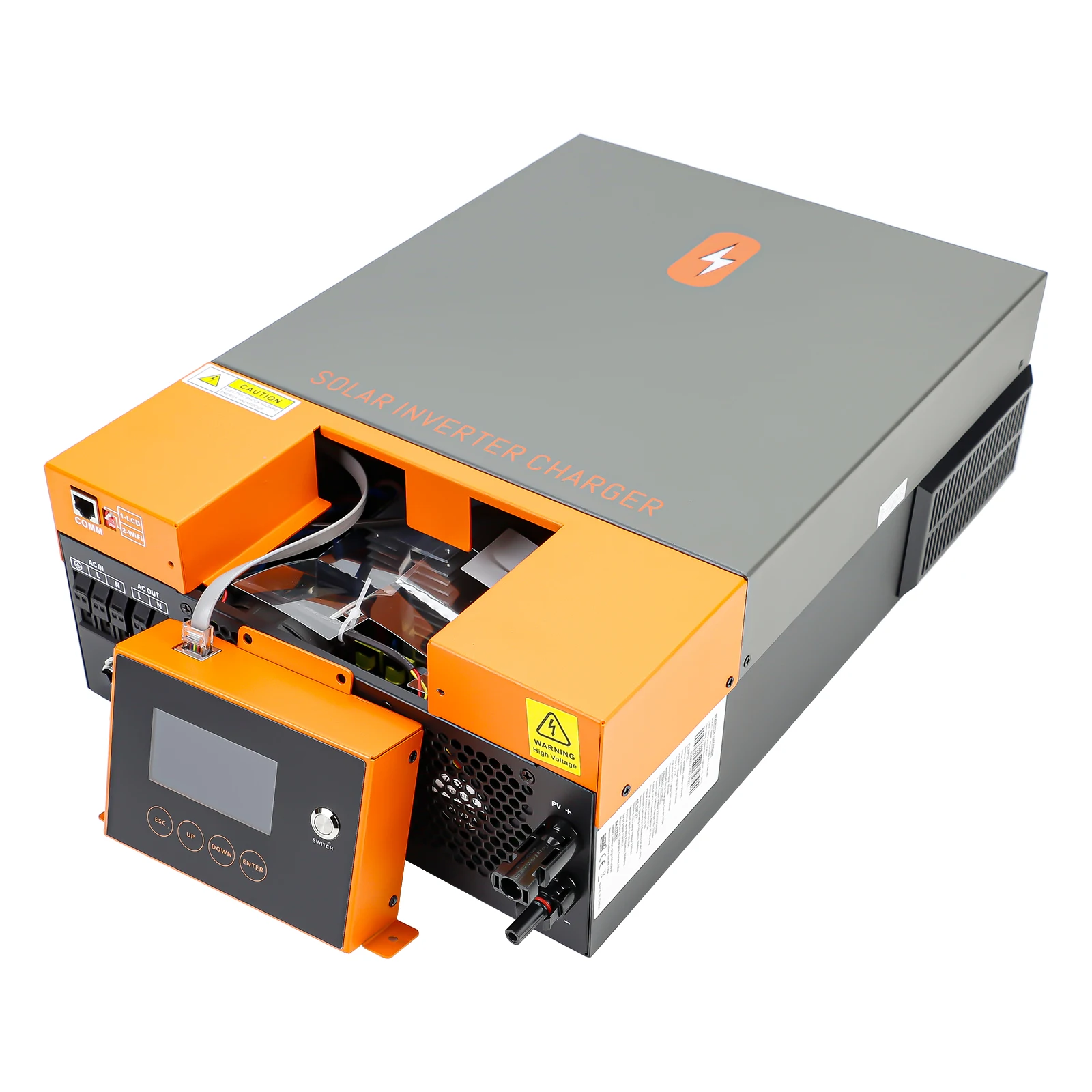

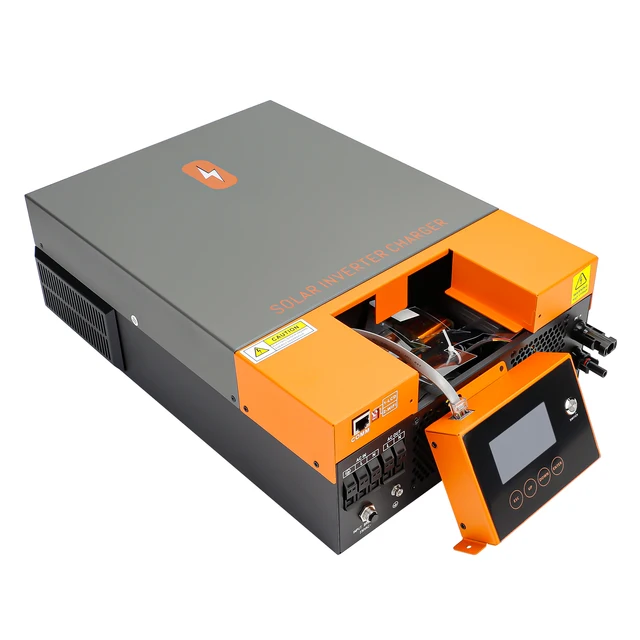

    10.With Movable Screen

    11.For grid connection or off grid use

    12.During grid connection, excess PV power can be transmitted to the grid safely.

    Specifications：

    Model
    3.6KW
    4.2KW
    6.2KW
    Input Voltage Waveform
    Sinusoidal (utility or generator)
    Input Voltage Waveform
    230Vac
    Low Loss Voltage
    170Vac±7V (UPS)； 90Vac±7V (Appliances)
    High Loss Voltage
    280Vac±7V
    High Loss Return Voltage
    270Vac±7V
    Max AC Input Voltage
    300Vac
    Nominal Input Frequency
    50Hz/ 60Hz (Auto-detection)
    Low Loss Frequency
    40±lHz
    Low Loss Return Frequency
    42±lHz
    High Loss Frequency
    65±lHz
    Output Short Circuit Protection
    Circuit Breaker
    Efficiency (Line Mode)
    >95% ( Rated R load, battery full charged )
    Transfer Time
    10ms typical (UPS);
    20ms typical (Appliances)
    Low DC Warning Voltage
    @ Io ad < 50>%
    22.0Vdc
    44.0Vdc
    @ load >50%
    21.0Vdc
    42.0Vdc
    Low DC Warning Return Voltage
    @ load < 50%
    22.5Vdc
    45Vdc
    @ load >50%
    22.5Vdc
    44Vdc
    Low DC Cut off Voltage
    @ load < 50%
    20.5Vdc
    41.5Vdc
    @ load >50%
    20.0Vdc
    40.0Vdc
    High DC Recovery Voltage
    32Vdc
    62Vdc
    High DC Cut-off Voltage
    33Vdc
    63Vdc
    AC Charging Current (Max)
    100Amp (@Vi/p=230Vac)
    Max. PV Array Power
    6200W
    Nominal PV Voltage
    240Vdc
    360Vdc
    PV Array MPPT Voltage Range
    90~450Vdc
    Max Charging Current (AC charger plus solar charger)
    120Amp
    140Amp
    120Amp

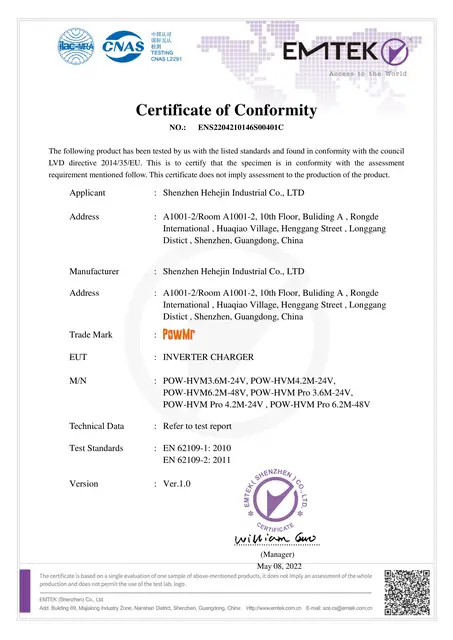

    Safety Certification
    CE
    Dimension (D*W* H), mm
    100 x 300 x 444
    Net Weight, kg
    10
    10.5
    11

    Photos:
