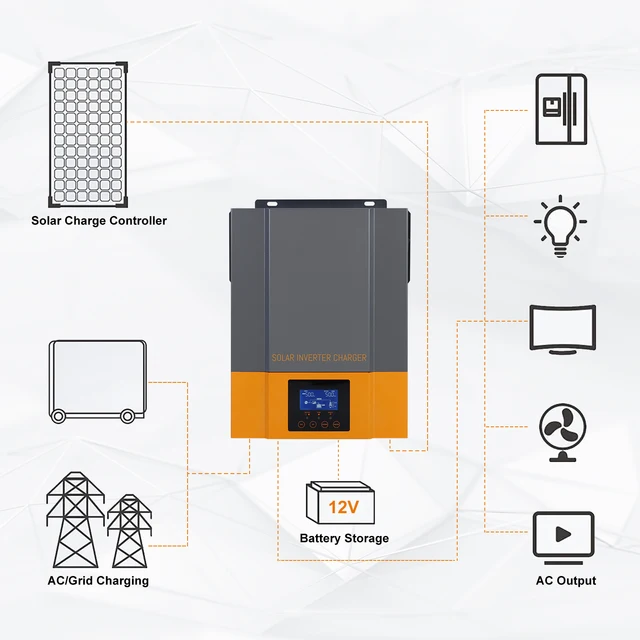

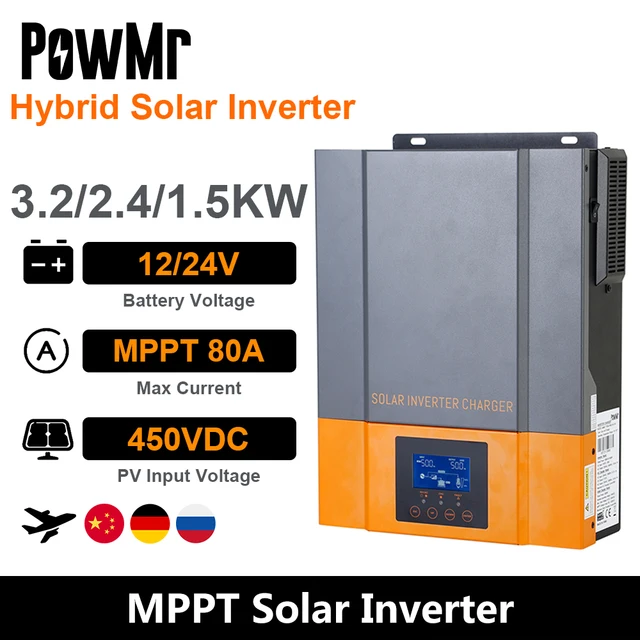

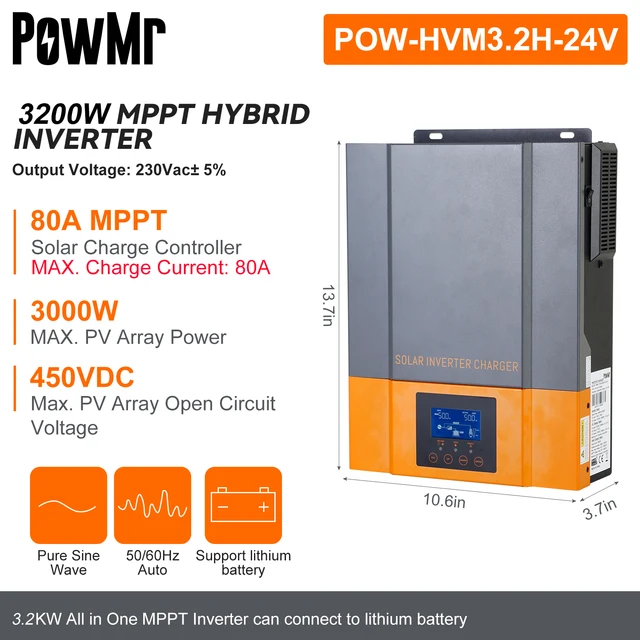

PowMr 3.2KW Hybrid Solar Inverter 24V to 230V MPPT 80A Output Photovoltaic Hybrid Inverter Build-in MPPT Solar Charge Controller

INVERTER MODEL

1.5KW 12V

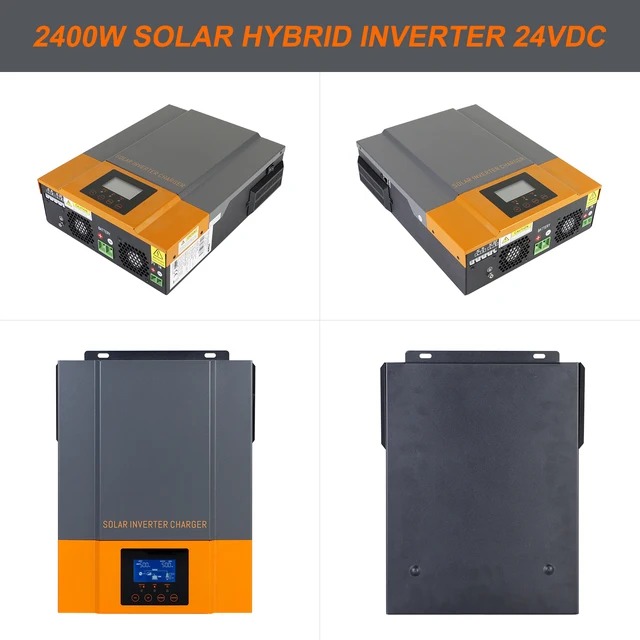

2.4KW 24V

3.2KVA/3KW 24V

Rated Output Power

1.5KW

2.4KW

3200VA/3000W

Output Voltage Waveform

Pure Sine Wave

Output Voltage Regulation

230Vac±5%

Utility Charging Mode

INVERTER MODEL

1.5KW 12V

2.4KW 24V

3.2KVA/3KW 24V

Charging Algorithm

3-Step

AC Charging Current (Max)

60 Amp

Bulk Charging Voltage

Flooded Battery

14.6

29.2

AGM / Gel Battery

14.1

28.2

Floating Charging Voltage

13.5Vdc

27.0Vdc

MPPT Solar Charging Mode

1.5KW 12V

2.4KW 24V

3.2KVA/3KW 24V

Max. PV Array Power

2000W

3000W

3000W

Nominal PV Voltage

240Vdc

PV Array MPPT Voltage Range

90~430Vdc

Max. PV Array Open Circuit Voltage

450Vdc

Max Charging Current (AC charger+solar charger)

80Amp

INVERTER MODEL

1.5KW 12V

2.4KW 24V

3.2KVA/3KW 24V

Safety Certification

CE

Operating Temperature Range

-10°C to 50°C

Storage temperature

-15°C~ 60° C

Humidity

5% to 95% Relative Humidity (Non-condensing)

Input Voltage Waveform

Sinusoidal (utility or generator)

Nominal Input Voltage

230Vac

Low Loss Voltage

170Vac±7V (UPS)； 90Vac±7V (Appliances)

Low Loss Return Voltage

180Vac±7V (UPS);

100Vac±7V (Appliances)

High Loss Voltage

280Vac±7V

High Loss Return Voltage

270Vac±7V

Max AC Input Voltage

300Vac

Nominal Input Frequency

50Hz/ 60Hz (Auto-detection)

Low Loss Frequency

40±Hz

Low Loss Return Frequency

42±Hz

High Loss Frequency

65±Hz

High Loss Return Frequency

63±Hz

Output Short Circuit Protection

Circuit Breaker

Efficiency (Line Mode)

>95% ( Rated R load, battery full charged )

Transfer Time

10ms typical (UPS);

20ms typical (Appliances)

INVERTER MODEL

1.5KW 12V

2.4KW 24V

3.2KVA/3KW 24V

Output Frequency

50Hz/ 60Hz (Auto-detection)

Peak Efficiency

91%

94%

Overload Protection

5s@ >150% Io ad; 10s@ 110% ~ 150% Io ad

Surge Capacity

2* rated power for 5 seconds

Nominal DC Input Voltage

12Vdc

24Vdc

Cold Start Voltage

11.5Vdc

23.0Vdc

Low DC Warning Voltage

@ Io ad < 50>%

11.0Vdc

22.0Vdc

@ load >50%

10.5Vdc

21.0Vdc

Low DC Warning Return Voltage

@ load < 50%

11.5Vdc

22.5Vdc

@ load >50%

11.0Vdc

22.0Vdc

Low DC Cut off Voltage

@ load < 50%

10.2Vdc

20.5Vdc

@ load >50%

9.6Vdc

20.0Vdc

High DC Recovery Voltage

14.0Vdc

32Vdc

High DC Cut-off Voltage

16.0Vdc

33Vdc

No Load Power Consumption

<25W

<30W

<35W
