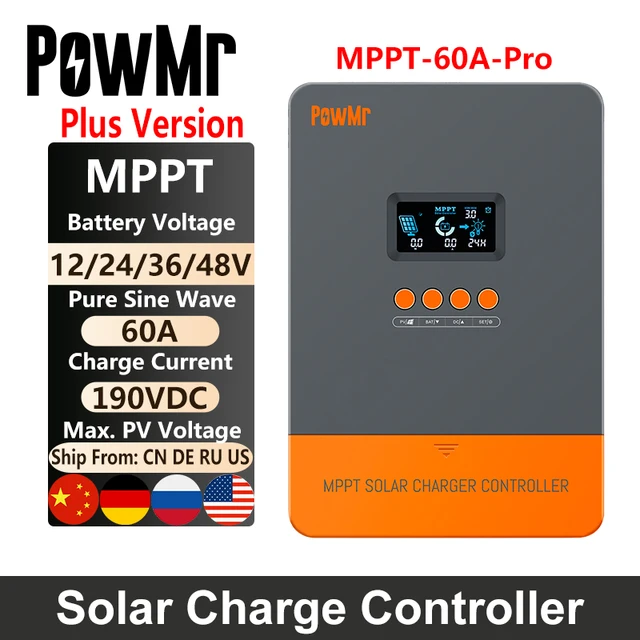

PowMr 100% MPPT 60A Solar Charge Controller 190V Plus Version DSP Regulator Work For Solar Battery 12V 24V 36V 48V Solar Panel

From R2079.84

  • Ships From:

  • Color:

  • Current:

Categories:

Buy With Confidence

100% Safe Payment



  • Description

    PowMr MPPT 60A Solar Charge Controller 190V Plus Version DSP Regulator Work For Solar Battery 12V 24V 36V 48V Auto Solar Panel


    Overview:

    PowMR 60Amps MPPT solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 97%.

    Features:

    ●MPPT 30A/40A/50A/60A solar charge controller
    ●100% MPPT technology
    ●0 Layer, easy installation, easy setup
    ●Built-in DSP controller with high performance
    ●Automatic switch for 12V/24V/36V/48V battery bank
    ●3-stage charging optimizes battery performance
    ●Overcharge protection, Input PV polarity reverse protection, Output limited current protection,
    ●Over-temperature protection
    ●Troubleshooting promotion function.
    ●Suitable for battery types such as sealed lead acid, vented gel, and lithium battery, etc
    ●Easy to be mounted

    ●Restore all data with one click

    Product Details:

    Technical Specification for Selection Guide
    Models
    POW-M60-PRO
    Charging mode
    MPPT Maximum power point tracking automatically
    Charging
    3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge
    System type
    DC12V/24V/36V/48V Recognition automatically
    System voltage automatic recognition
    1 2V system (DC9V-DC15V)
    24V system (DC18V-DC29V)
    36V system (DC30V-DC39V)
    48V system (DC40V〜DC60V)
    Soft start time
    <1S
    Dynamic response and recovery time
    >98.1 % (Voc is 1.5 or 2 times than battery, then it’s the best efficiency)
    PV utilization
    >99%
    Input specification
    VOC from PV( Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s the best efficiency.)
    12V system (DC20V〜DC80V)
    24V system (DC37V-DC105V)
    36V system (DC50V〜DC160V)
    48V system (DC72V〜DC160V)
    The maximum PV input voltage (Voc)
    DC190V(The controller can’t work at this voltage of long duration that will break controller. Please refer to the Input voltage from PV.)
    The maximum PV input power (The total power rated of PV can’t be over this watt that will break the controller.)
    12V system (720W)
    24V system (1440W)
    36V system (2100W)
    48V system (2800W)
    Output specification
    Selectable battery type(default is Sealed)
    Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)
    Absorption Charging Voltage
    Refer to Batteries charging reference
    Floating Charging Voltage
    Refer to Batteries charging reference
    Overcharging protection voltage
    12V system (15V)
    24V system (30V)
    36V system (45V)
    48V system (60V)
    Rated output current
    60A
    Temperature Coefficient
    ±0.02%/ °C
    Automatic temperature compensation
    14.2V-(Max temperature-25 °C)*0.3
    Output voltage ripple-peak
    100mv
    Output voltage accuracy
    <±1%
    Input Anti-intrusion protection
    yes
    Temperature Protection
    75°C
    Temperature increased protection
    Output power will reduce when it’s more than 70 °C
    Output power will be normal when it’s less than 55 °C
    Fan-on temperature
    >40 °C
    Fan-off temperature
    <35 °C
    Acoustic noise
    <40dB
    Cooling way
    Forced air cooling
    Components
    Imported materials, Accord to EU standards, Industrial grade range.
    Environmental requirements
    Meet 2002/95/EC; No cadmium, hydrides, and fluorides
    Security Level
    Accord to CE, PSE, FCC, EMC, EN60950
    Electromagnetic Compatibility
    Accord to EN6W00, EN55022, EN55024
    Enclosure
    IP21
    Net weight(Kg)
    1.3
    Gross weight(Kg)
    1.5
